Featured Products

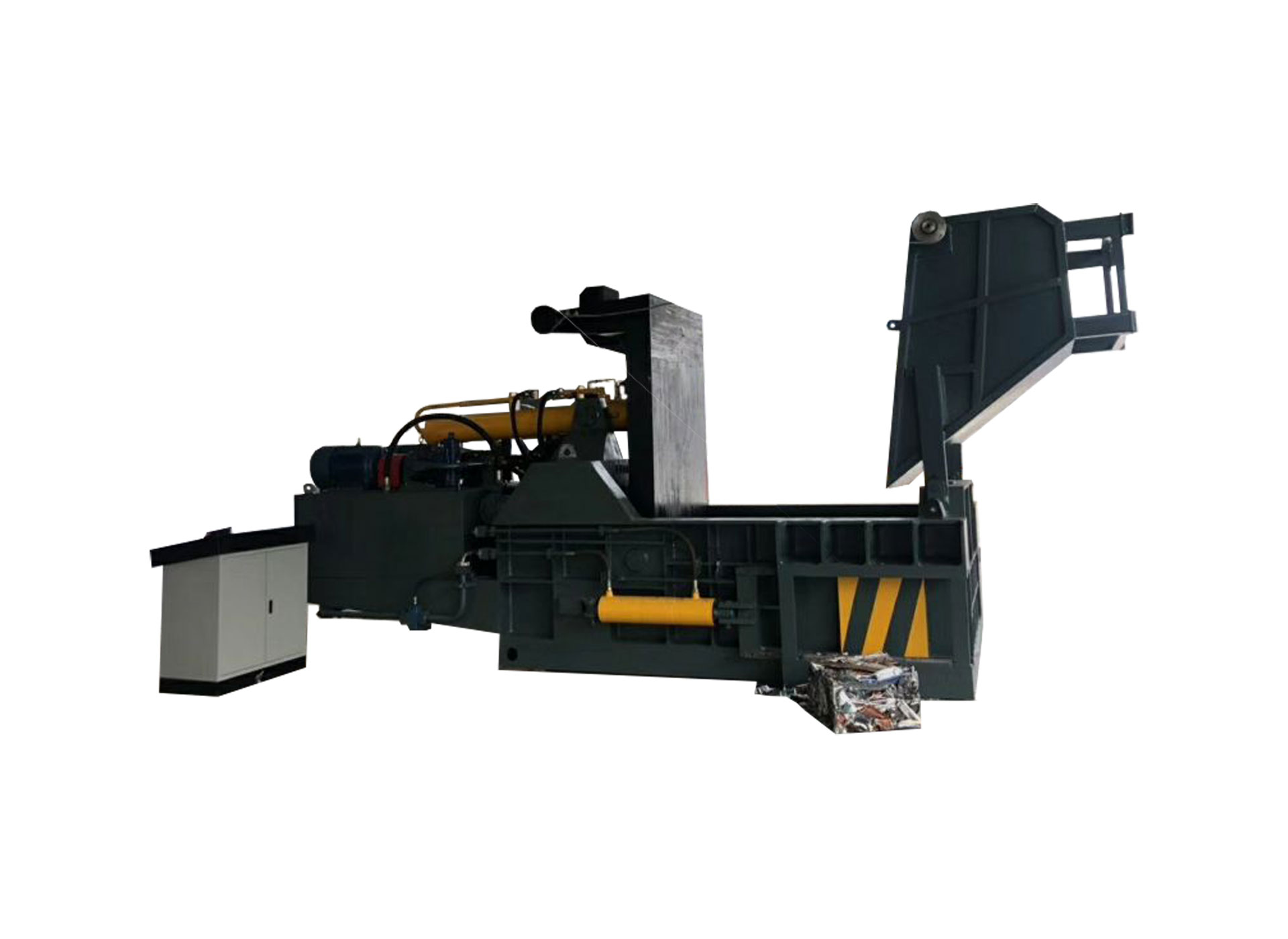

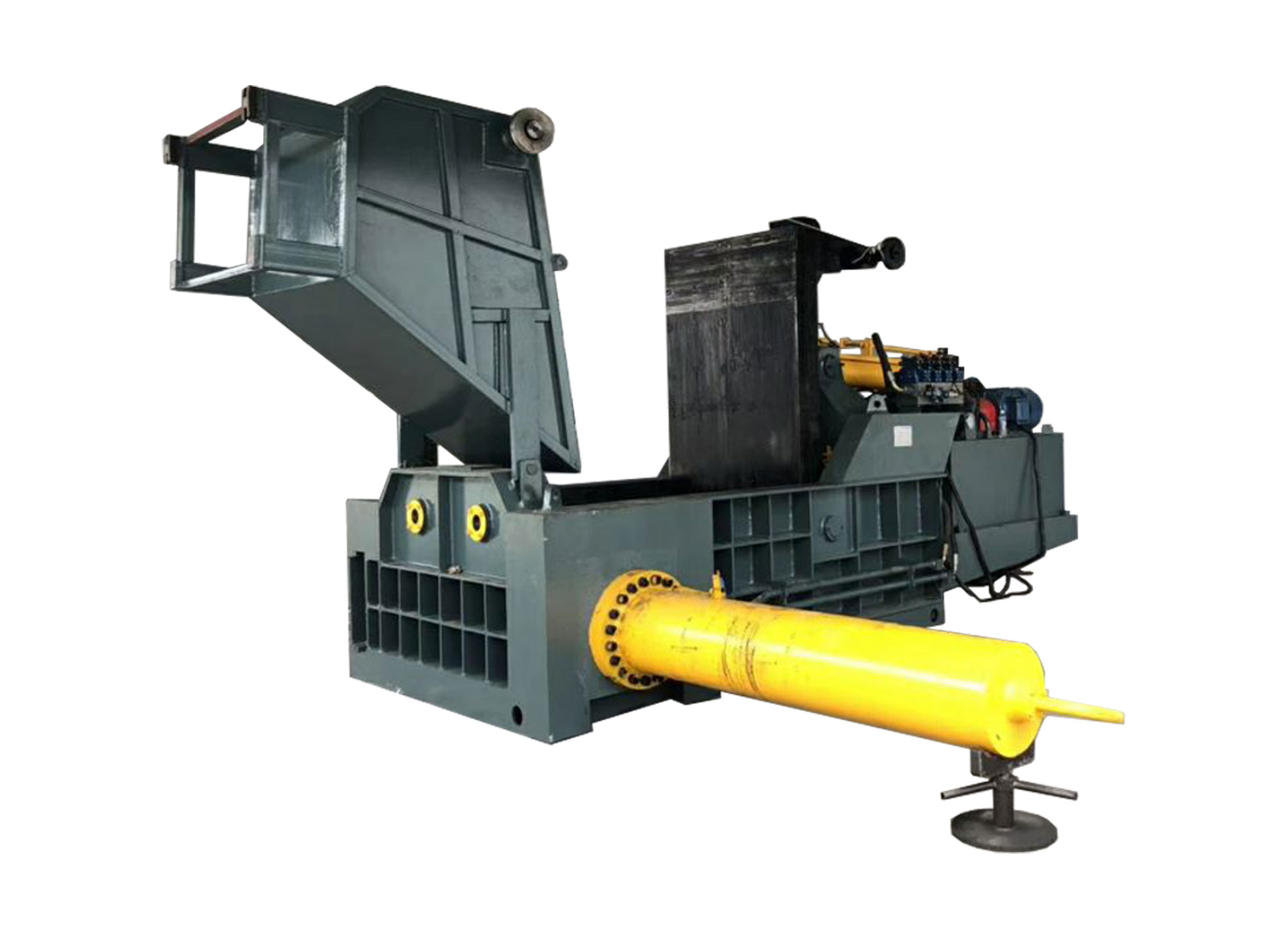

Y81 Scrap Metal Baler
Y81 series are mainly used in steel plants, recycling yards, waste recovery and metal refining industry. It compress scraps into high density bales.
• Compact design, installation free
• Pressing force ranges from 125T to 1000T
• Customized bale & chamber box size
• Hardox steel NM500 for whole wearing plates
Materials can be baled:
• Fe, Al, Cu, Cr-Ni Scraps • Ferrous and non-ferrous • Aluminium Extrusions, UBC, Profiles • Rebars, Sheets, Buckets and other Mixed Scraps
Y81 series are mainly used in steel plants, recycling yards, waste recovery and metal refining industry. It compress scraps into high density bales.
Model | Main cyl. force | Feed box size | Bale size | Bale weight | Capacity | Power |
Y81T-1250 | 125 | 120*70*60 | 30*30 | 50-70 | 0.8-1.0 | 18.5 |
Y81T-1600A | 160 | 160*100*70 | 40*40 | 120-160 | 1.0-1.5 | 22 |
Y81T-1600B | 160 | 160*120*80 | 40*40 | 140-180 | 1.5-2.5 | 30 |
Y81T-2500 | 250 | 200*140*90 | 50*50 | 250-350 | 3.0-5.0 | 44 |
Y81T-3150A | 315 | 200*175*120 | 50*50 | 400-600 | 5.0-7.0 | 90 |
Y81T-4000 | 400 | 350*300*130 | 70*70 | 800-1000 | 8.0-10.0 | 135 |

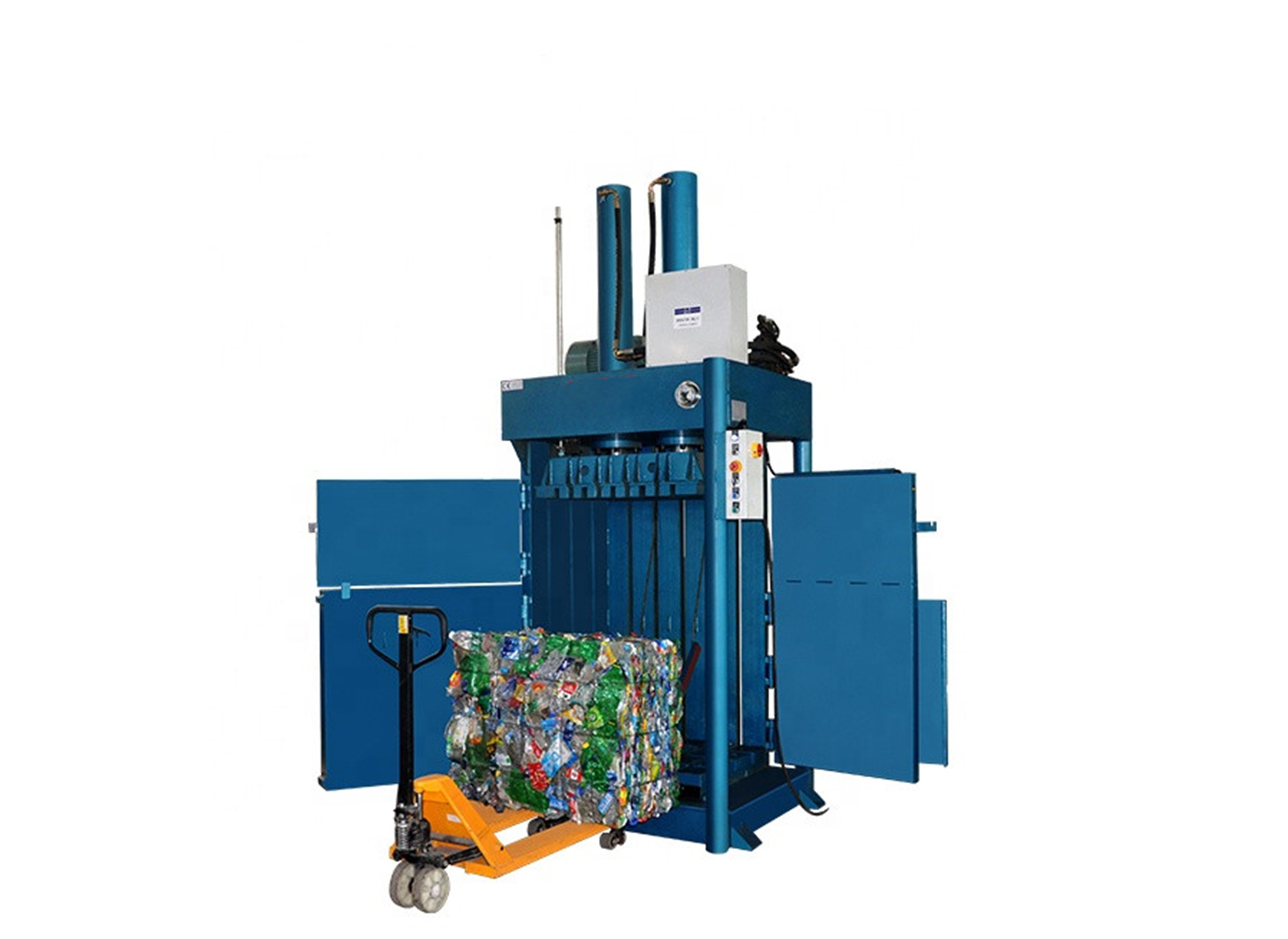

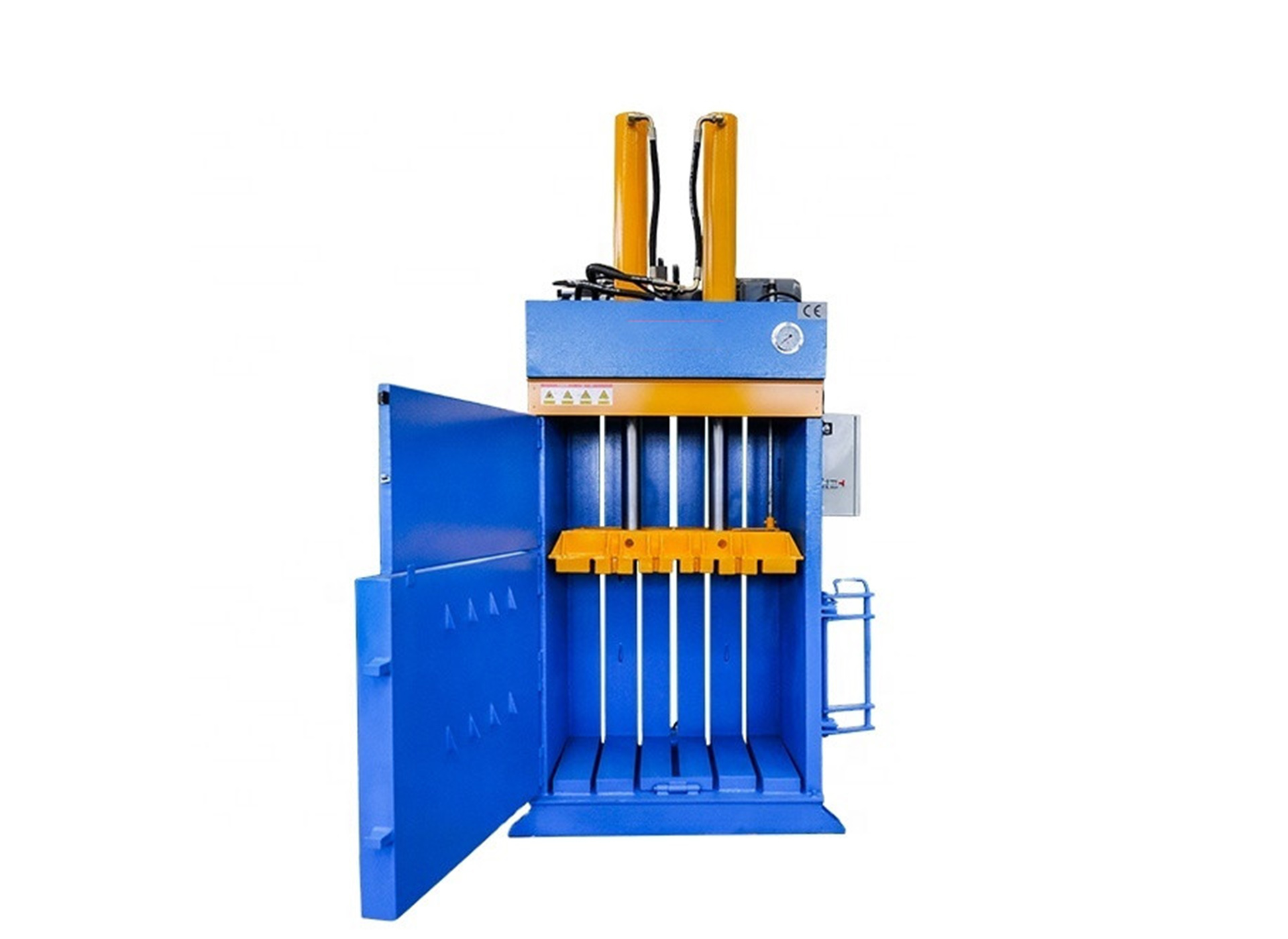

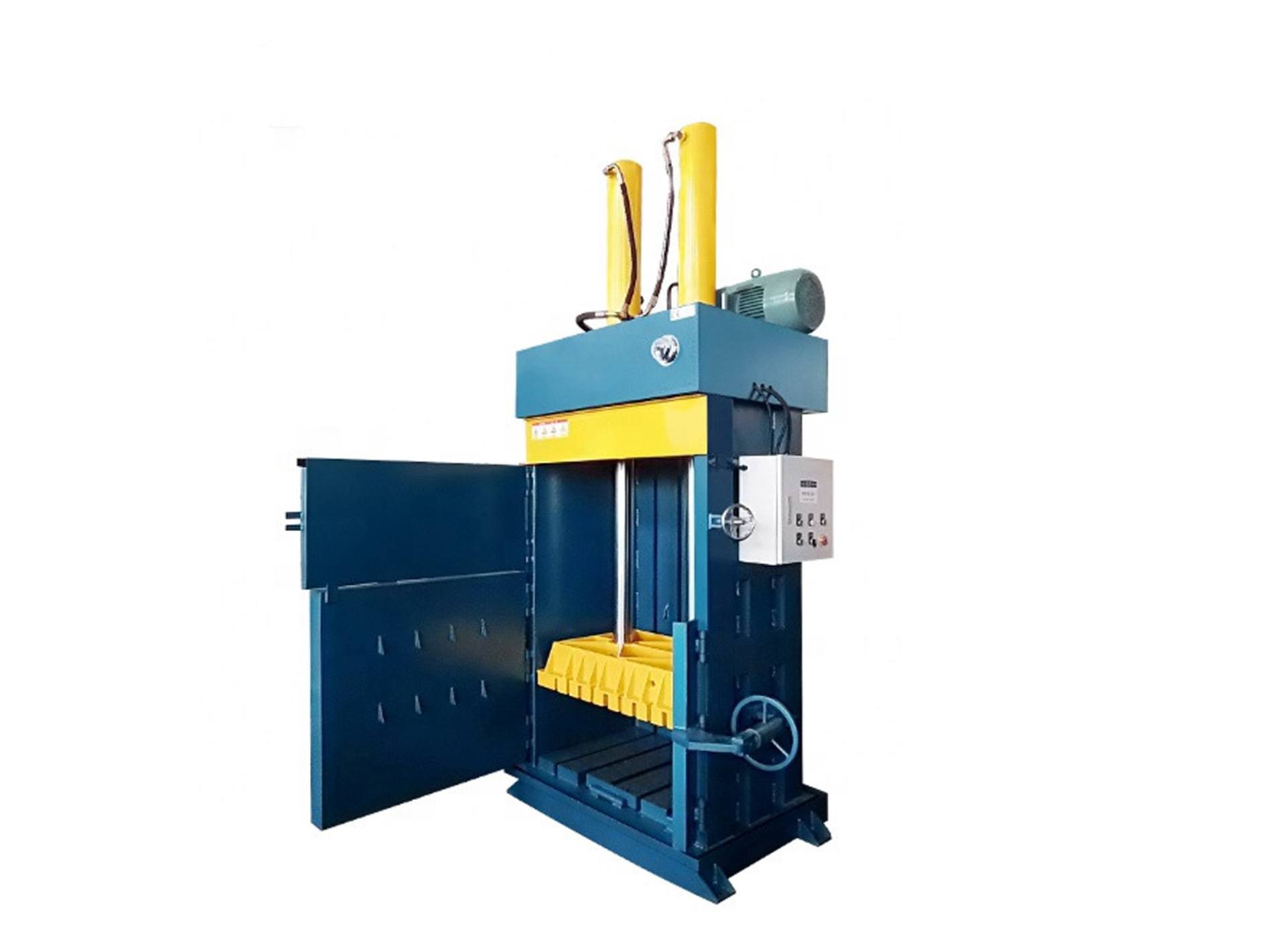

Y82 Non-Metal Waste Baler
Y82 series vertical baler is for compacting nonmetal scrap, such as waste paper, cardboard boxes, plastic film and PET bottles, leather, some fiber and other materials.etc. It is widely used for scrap yards, hotels, supermarkets, shops, manufacturering plants, farms and other waste management places.
• Separate feeding opening
• Automatic bales out device
• With safety interlock, safe and reliable
• Integrated design, less space required
Model | Y82F-200 | Y82F-600 | Y82F-800 |
Thrust force | 20Ton | 60Ton | 80Ton |
Bale size(L*W*H) | 80*60*(40-80)cm | 110*70*(50-90)cm | 100*80*(50-100) cm |
Feed opening size(L*H) | 80*45cm | 110*50cm | 100*50cm |
Capability | 4-6 bales/hour | 4-6 bales/hour | 4-6 bales/hour |
Bale weight | 80-120Kg | 150-200Kg | 200-250Kg |
Power | 4KW | 7.5KW | 11KW |
Machine size(L*W*H ) | 110*100*305cm | 160*110*325cm | 170*145*350cm |
Weight | 1050Kg | 2200Kg | 2800Kg |

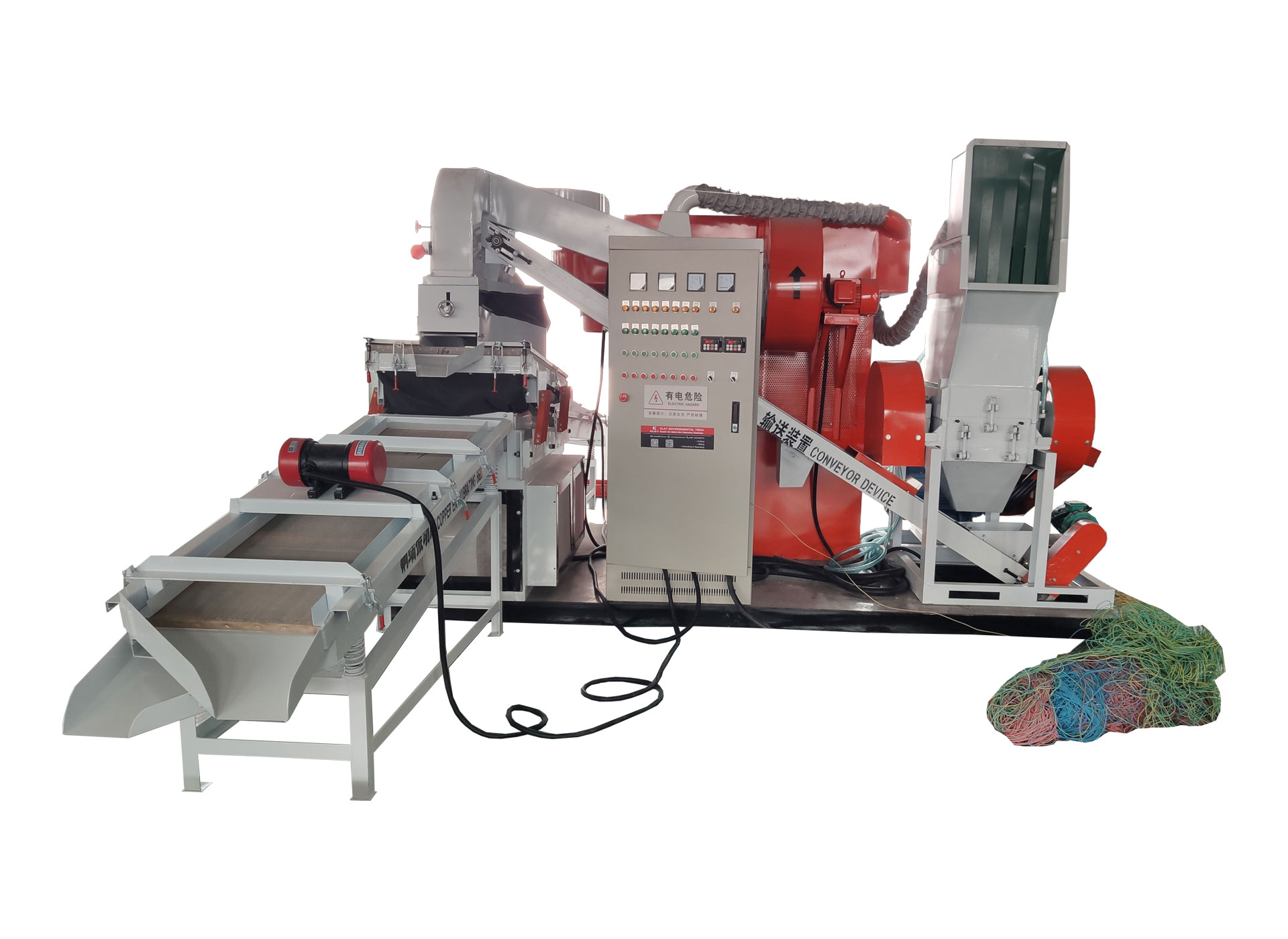

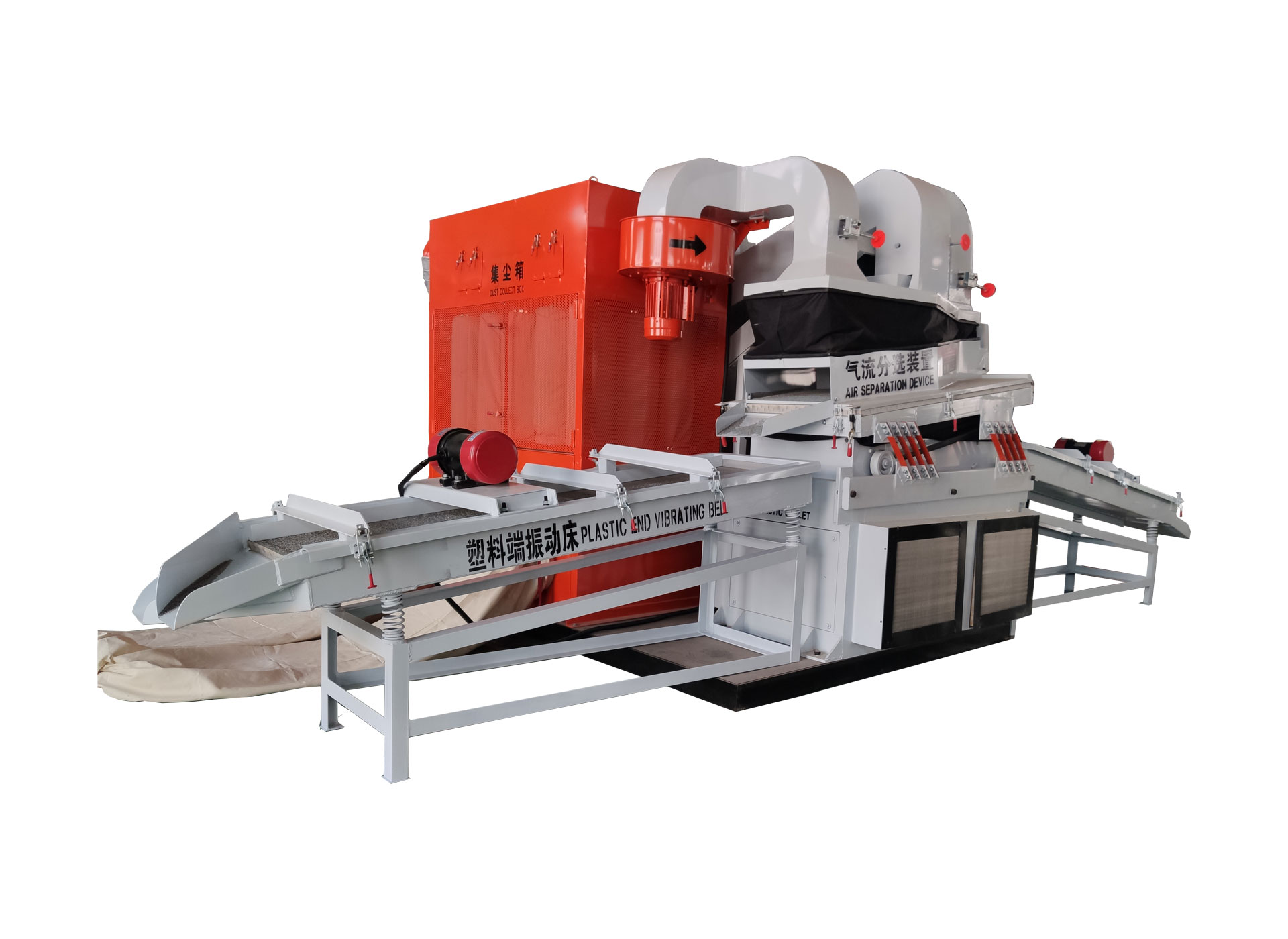

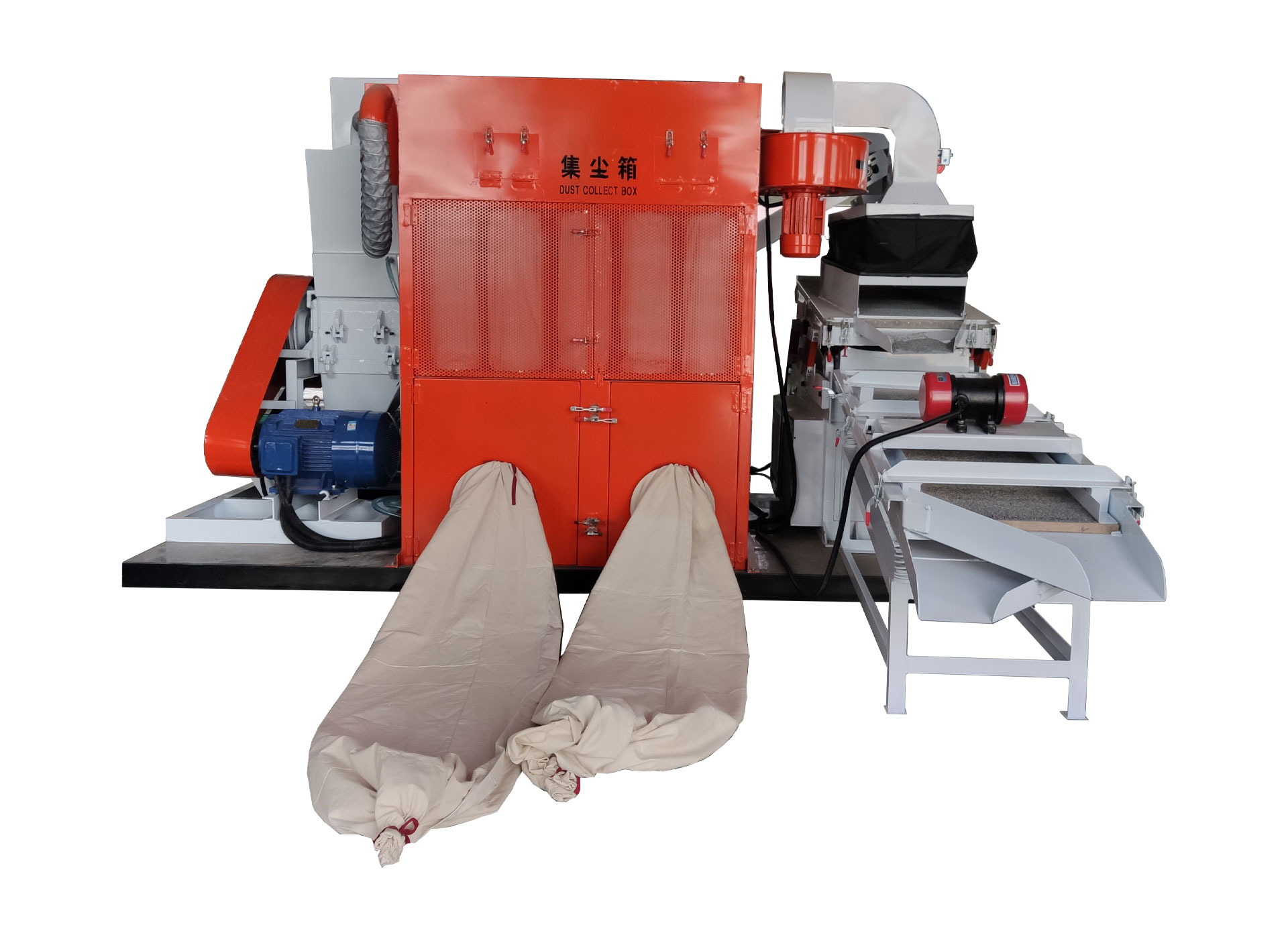

KLG Cable Granulator
KLG is a professional recycling line for scrap wire yard or recycling plant. It can recovery 99.9% copper and plastic from the scrap wires with dry air and gravity separator.
• Compact structure, flexible layout
• Installation free
• Extra vibrating table makes 99.9% separation
• Dust removing during whole production
Cables can be processed:
• Automobile wires • Car & motorcycle wires • Computer wires • Communication cable other mixed cables
Model |
KLS-918A |
KLS-918B |
KLS-918C |
KLS-918D |
KLS-918E |
Input cable size (mm) |
1-40 |
1-55 |
1.5-98 |
6-70 |
10-120 |
Capacity (kg/h) |
20-100 |
20-120 |
50-500 |
10-70 |
20-100 |
Power (kw) |
2.2 |
2.2-3 |
3-4 |
1.5 |
3 |
Machine weight (kg) |
110 |
120 |
240 |
55 |
110 |
Overall size (cm) |
65*55*84 |
70*55*85 |
77*55*118 |
63*37*48 |
67*58*110 |

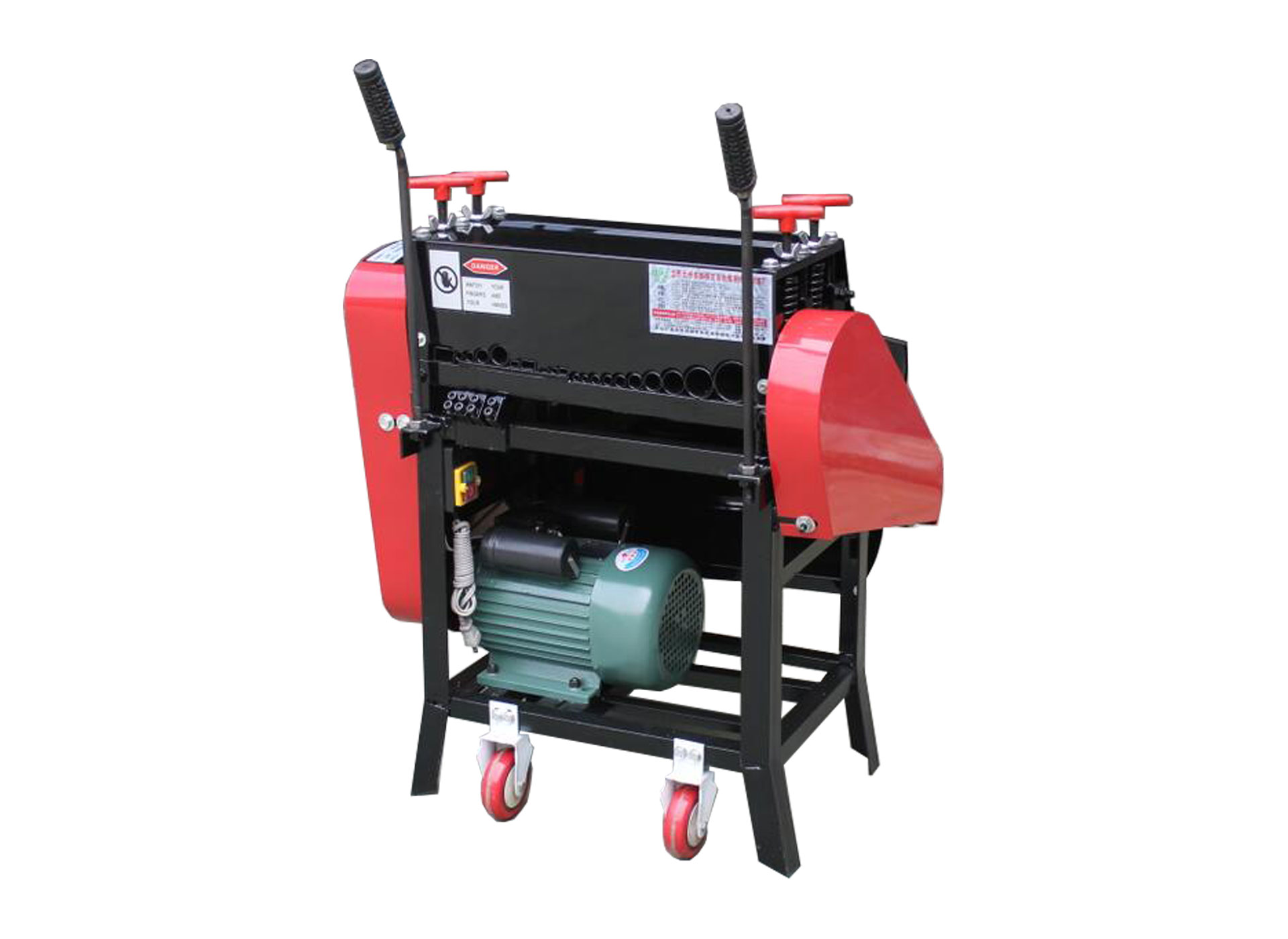

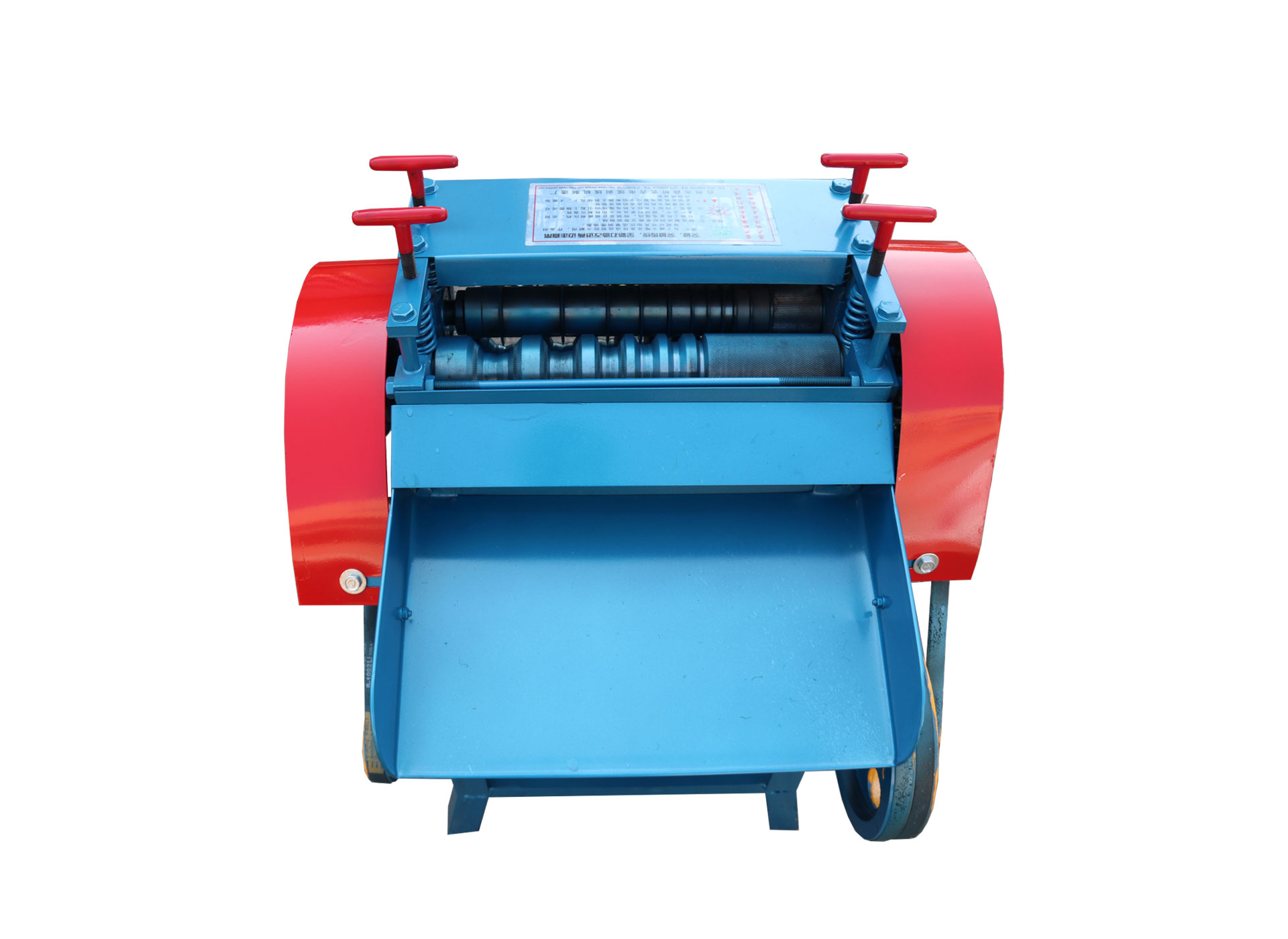

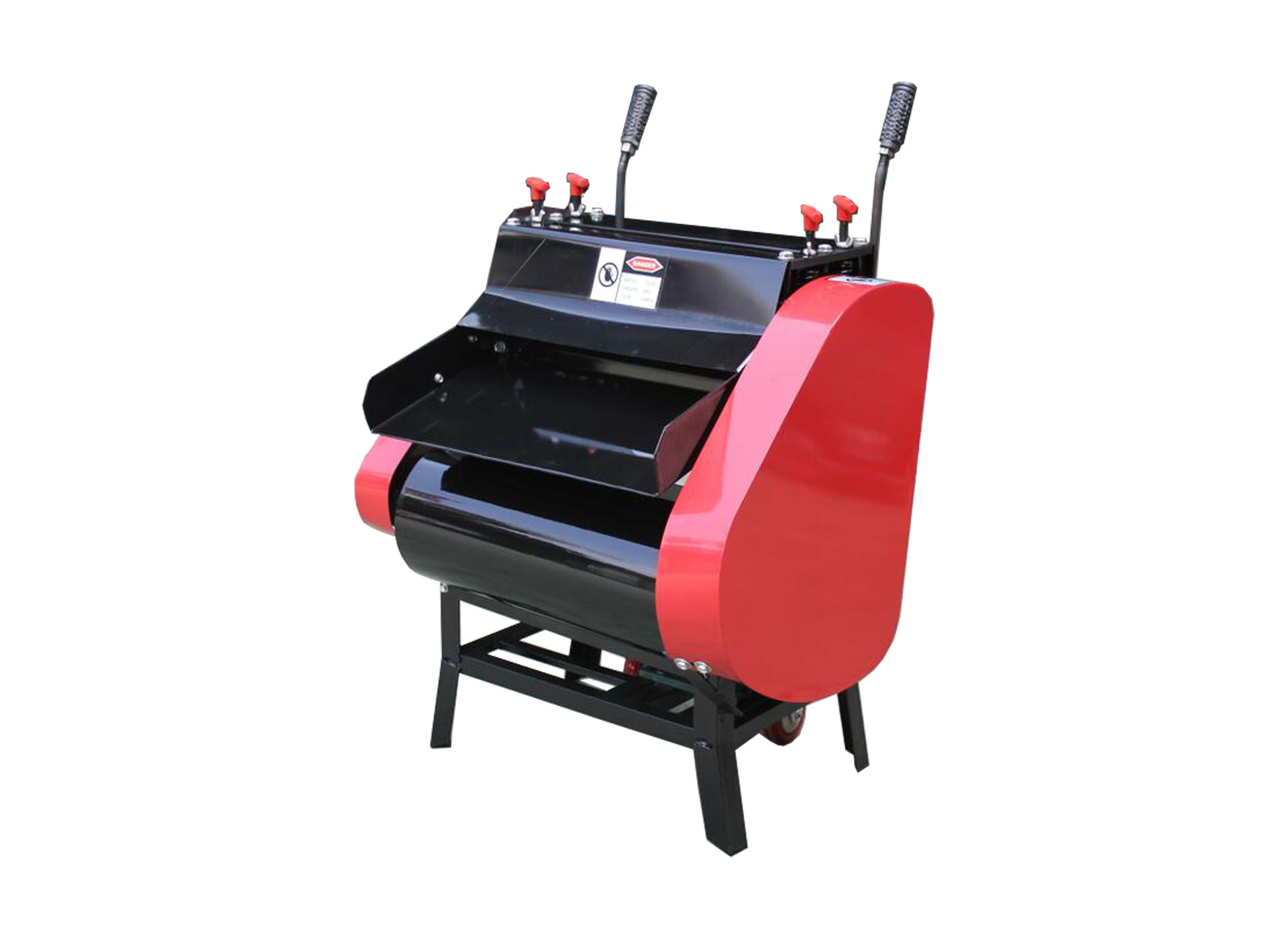

KLS Wire Stripping Machine
KLS normally runs alone or together with granulator. When cables can't be feeded directly in granulator, stripping machine can easily and efficiently peel the plastic or armoured iron. The processing range (diameter 1mm-120mm) is really amazing.
• Manual feeding and automatic peeling.
• Adjustable gears to suit different diameter wires.
• Affordable cost & small layout space.
• Wheels available, easy to move.
Model |
KLS-918A |
KLS-918B |
KLS-918C |
KLS-918D |
KLS-918E |
Input cable size (mm) |
1-40 |
1-55 |
1.5-98 |
6-70 |
10-120 |
Capacity (kg/h) |
20-100 |
20-120 |
50-500 |
10-70 |
20-100 |
Power (kw) |
2.2 |
2.2-3 |
3-4 |
1.5 |
3 |
Machine weight (kg) |
110 |
120 |
240 |
55 |
110 |
Overall size (cm) |
65*55*84 |
70*55*85 |
77*55*118 |
63*37*48 |
67*58*110 |

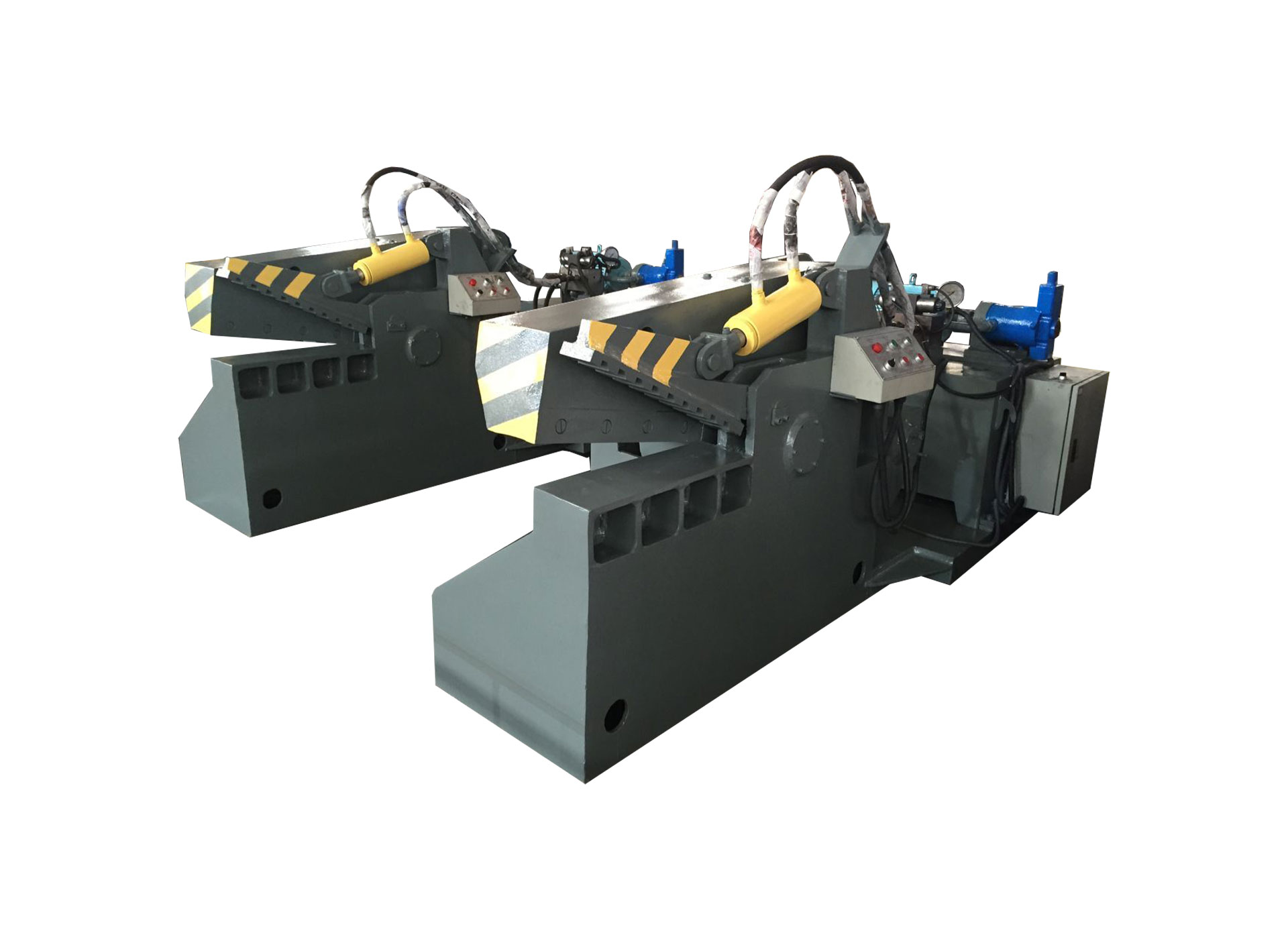

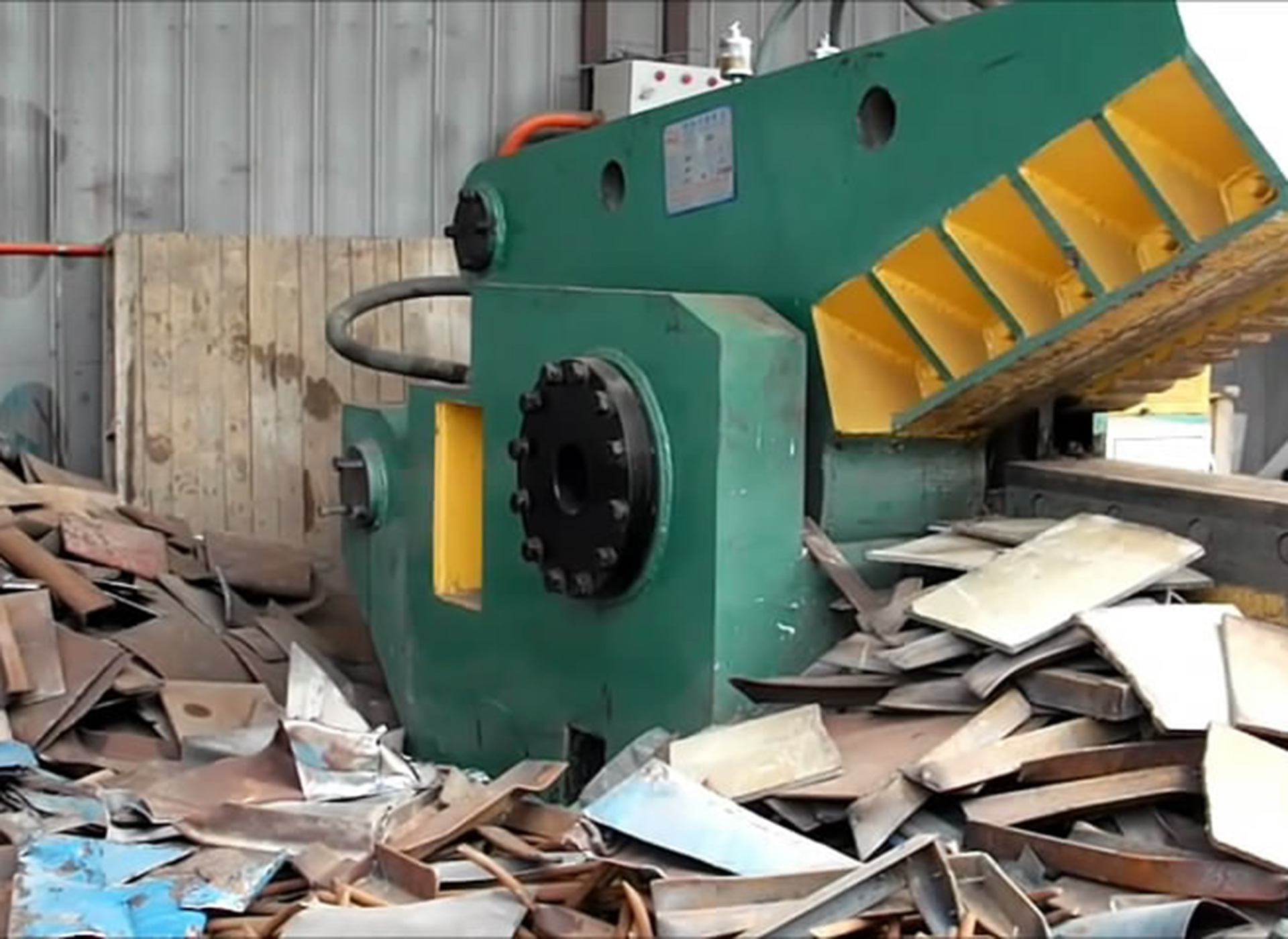

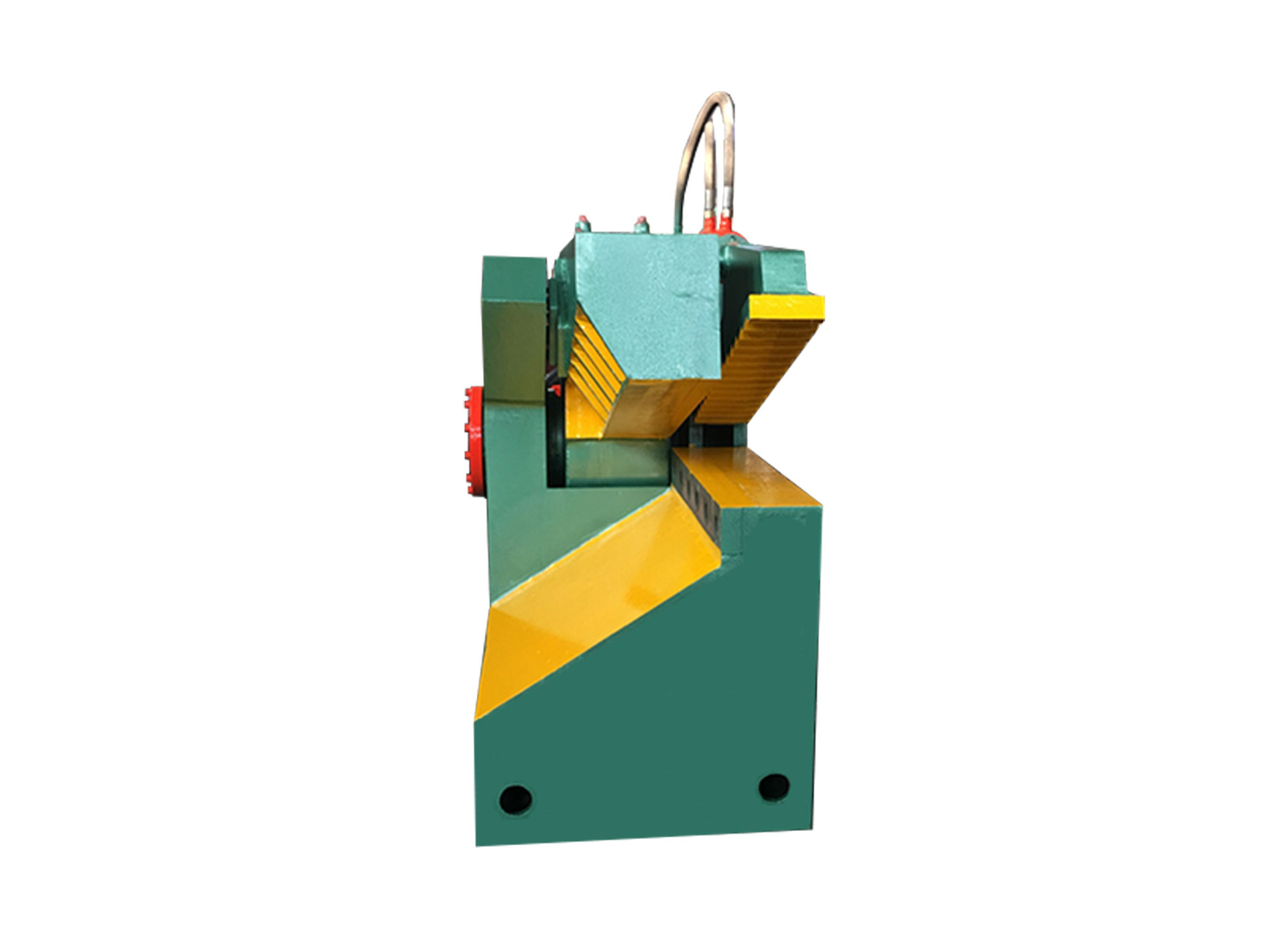

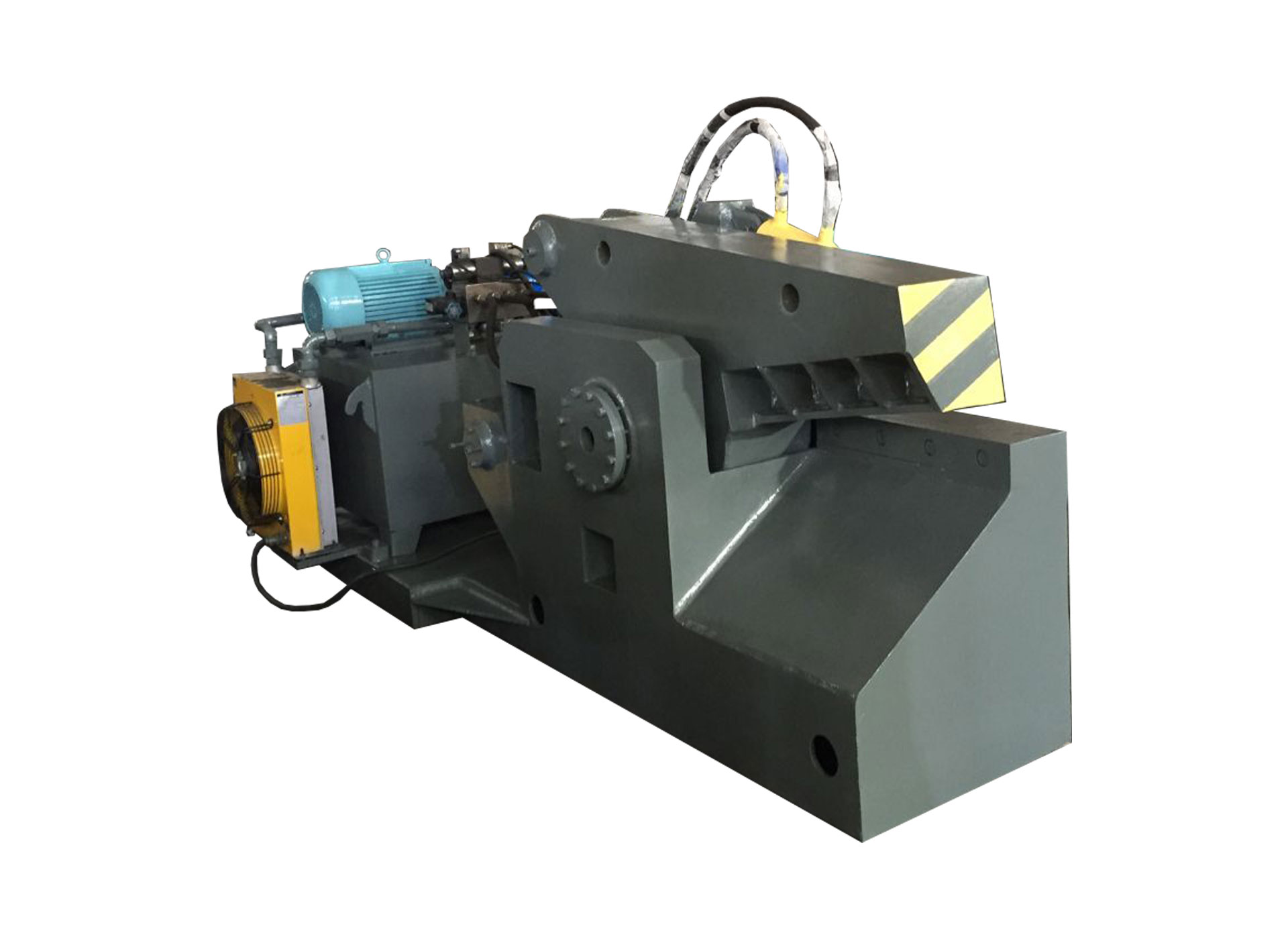

Q43 Alligator Metal Shear
Q43 series cutting shear applied in metal scrap yards, automobile dismantling plants, smelting & casting industry. It cuts most kinds of metal scraps to acceptable small size furnace charges,such as beam,channel & angle steel, sheets, bars etc.
• Simple operation & easy maintenance
• Diesel engine optional for power
• Customized blade length
• Automatic operation, foot pedal controller available
Materials can be baled:
• Fe, Al, Cu, Cr-Ni Scraps • Ferrous and non-ferrous sheet and plates • Aluminium Extrusions or profiles • Cables • Other Mixed Scrap
Model | Q43-1200 | Q43-2000 | Q43-2500 | Q43-3150 |
Shearing force (T) | 120 | 200 | 250 | 315 |
Blade Length（mm） | 600 | 800 | 1000 | 1200 |
Max. Cutting Size (mm） | 40X40/Ф45 | 55X55/Ф63 | 63X63/Ф70 | 70X70/Ф80 |
Max Opening (mm） | 200/280 | 380 | 480 | 520 |
Motor Power (KW) | 15 | 22 | 30 | 37 |
Application
Cables Recycling
For recovering the conductive metals within the waste cables, especially copper and aluminum, KLAY Stripping machines do peeling for any size cables, KLG granulator chops wires and separates the metals and plastic.

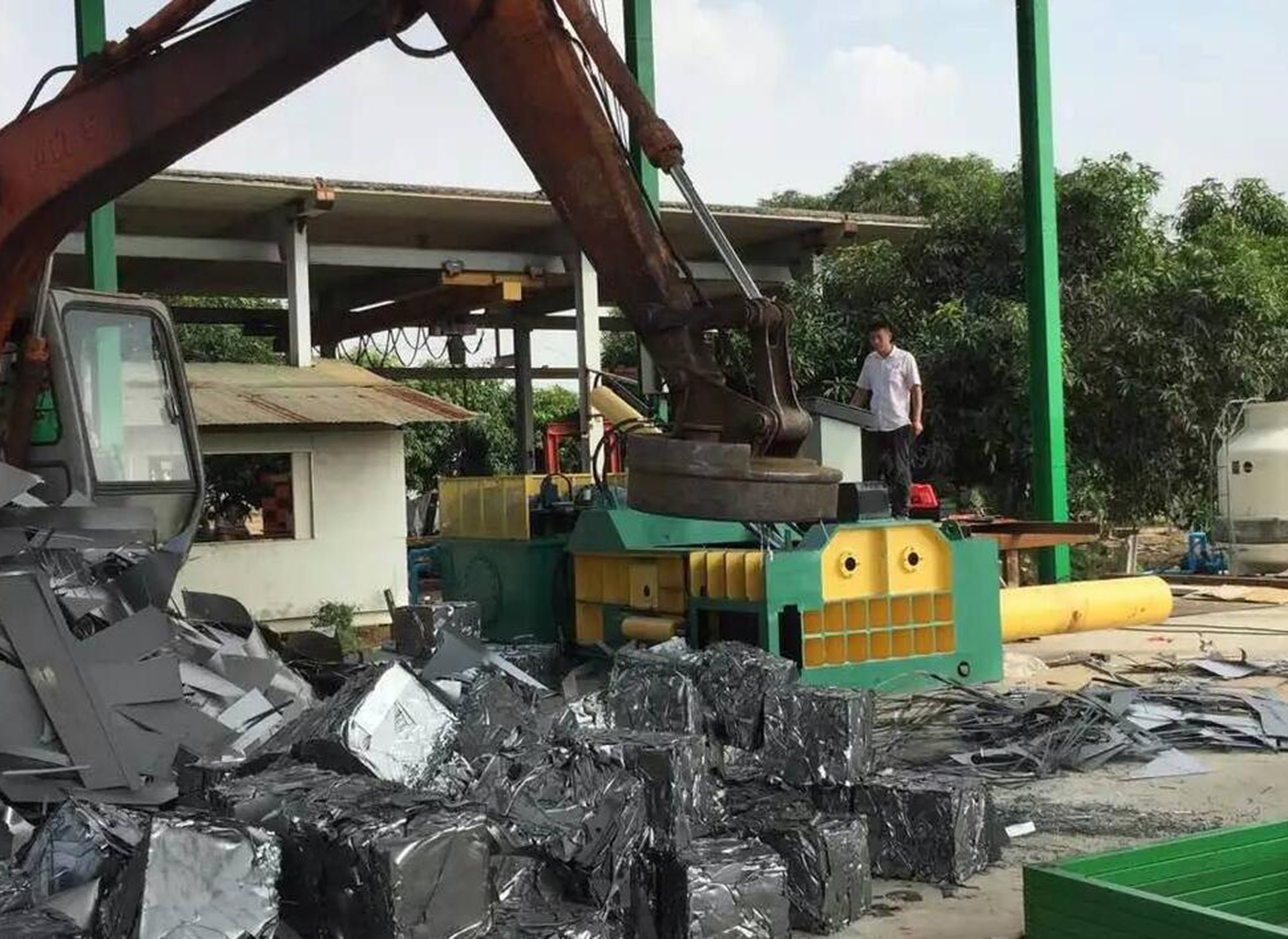

Scrap Metal Recycling
To improve the melting capacity of steel industry and better material management of scrap yards, scrap baling machine and cutting shear is necessary. Our wide range of machines can help you to customize and fine a perfect solution for your scrap
Non-metal Recycling
Waste plastic/paper are growing faster by our daily life, so it’s great business to recycle them. Besides the plastic being recovered from granulators, shredder and vertical baler becomes the main machinery being used.

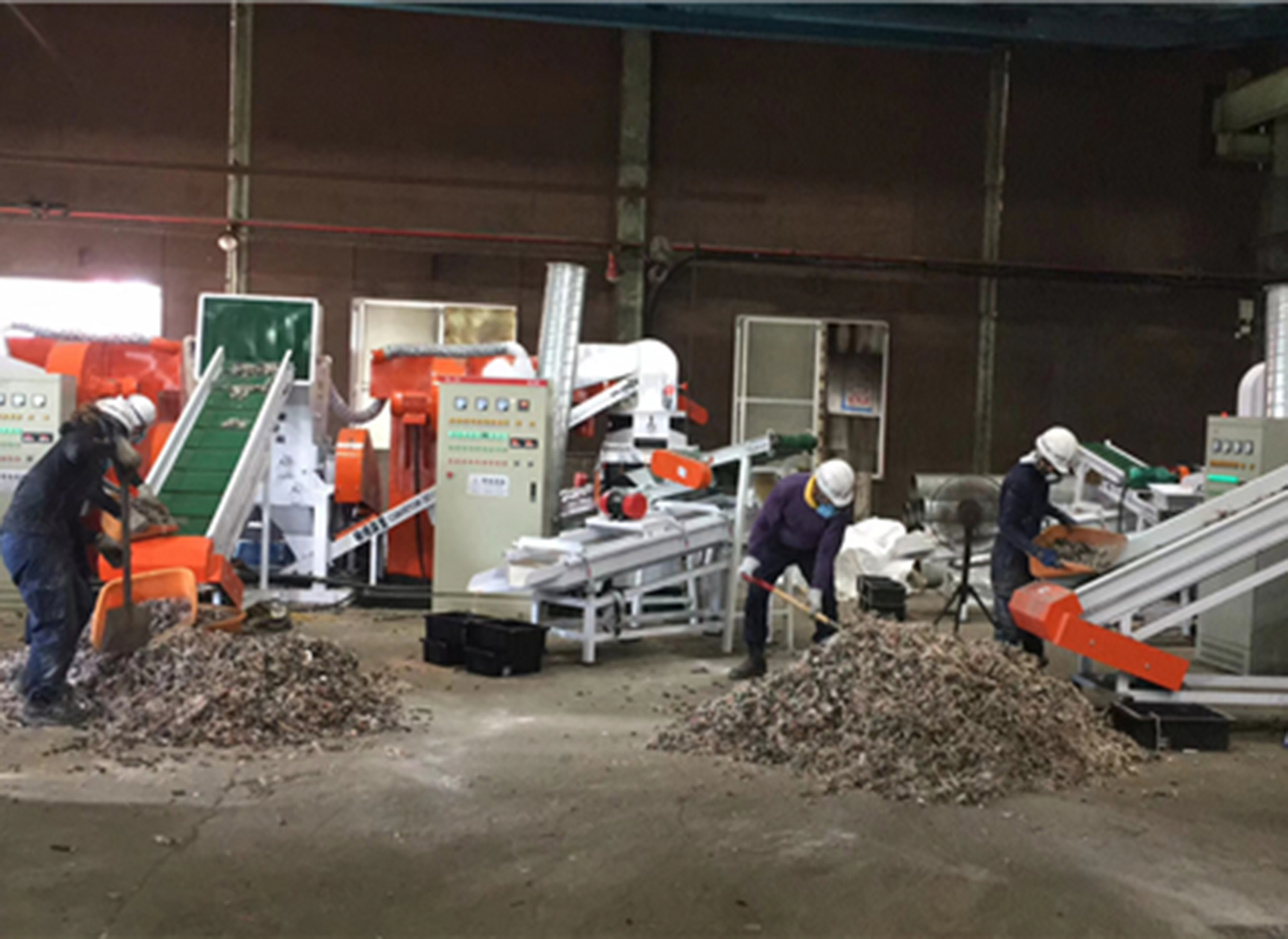

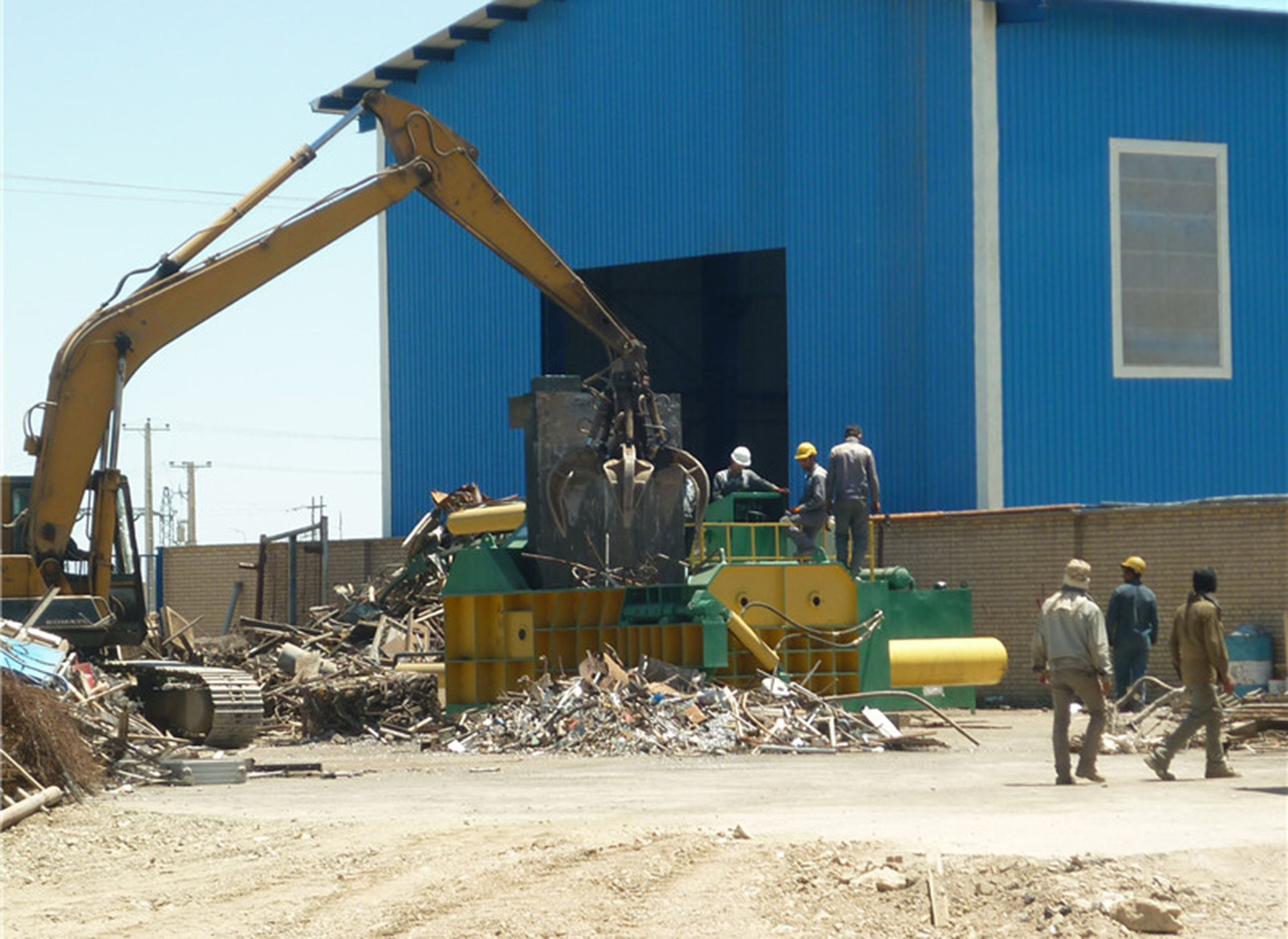

Projects That We're Proud Of

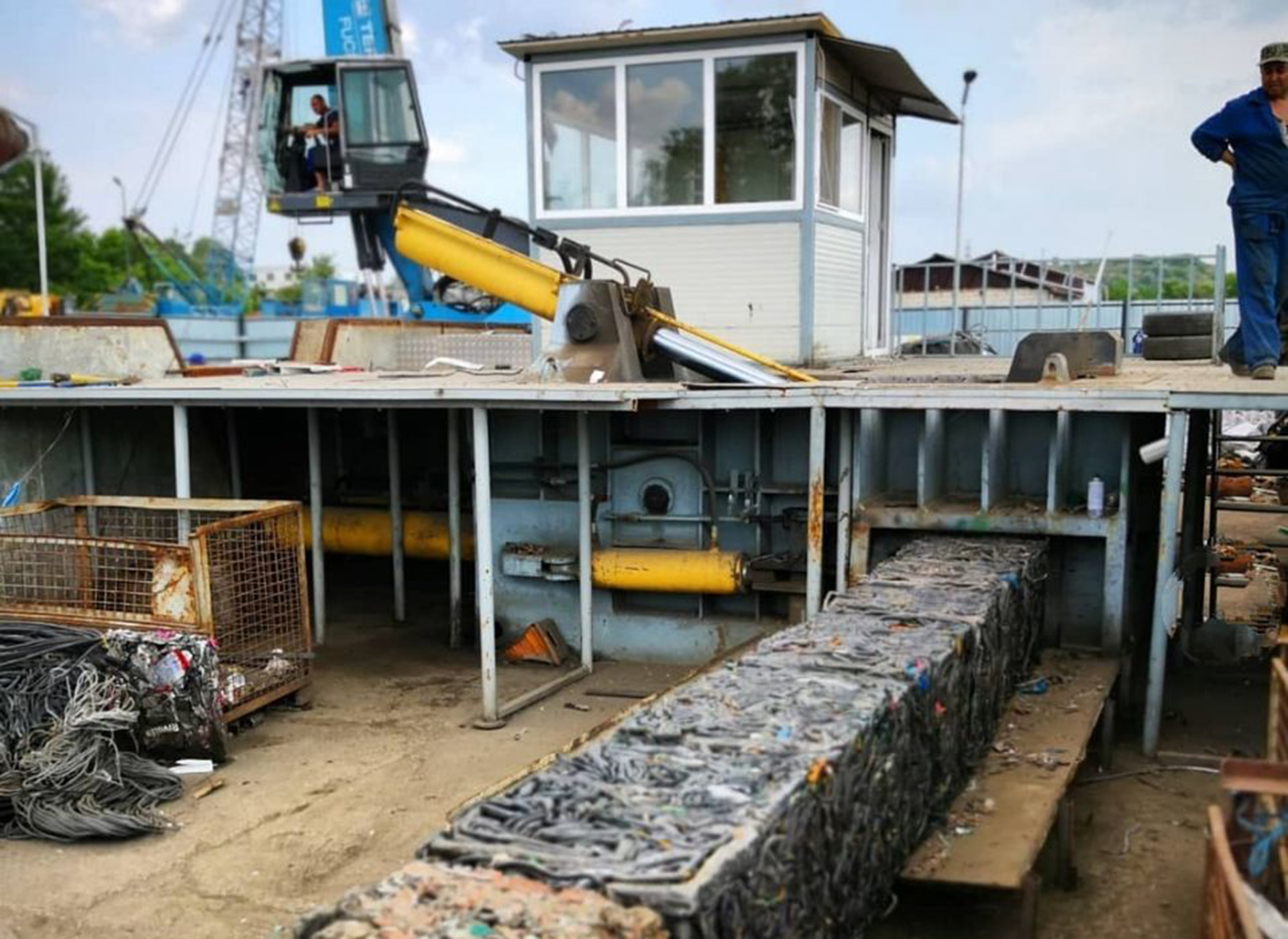

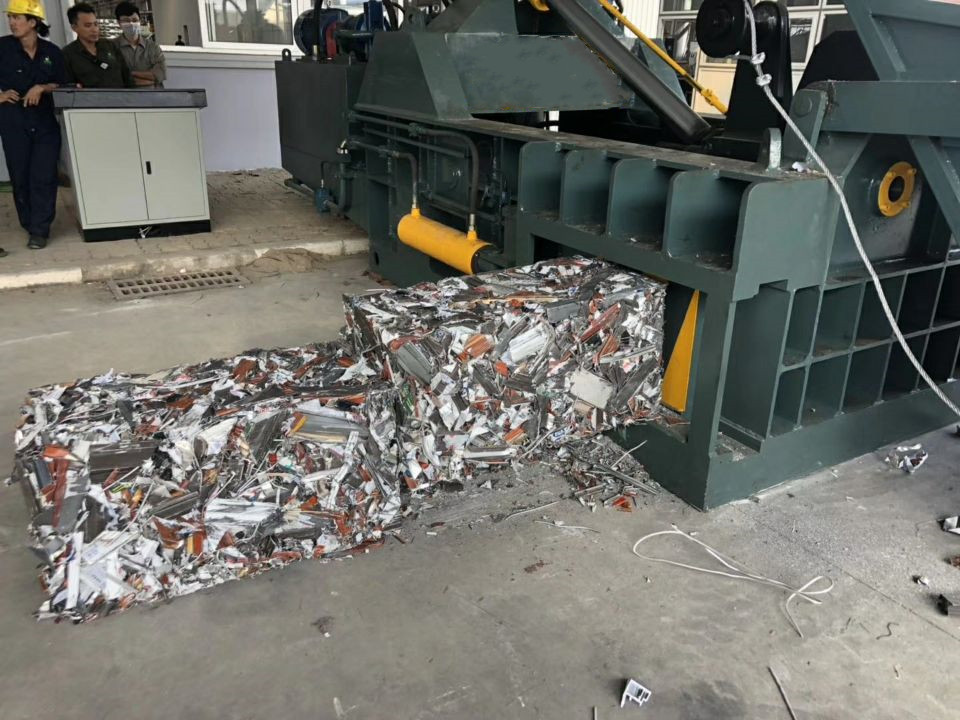

Y81T-3150 baler in Romania
Y81F-3150 baler in UAE
Y81T-1600 baler in Malaysia
Q43 Alligator shear in Chile

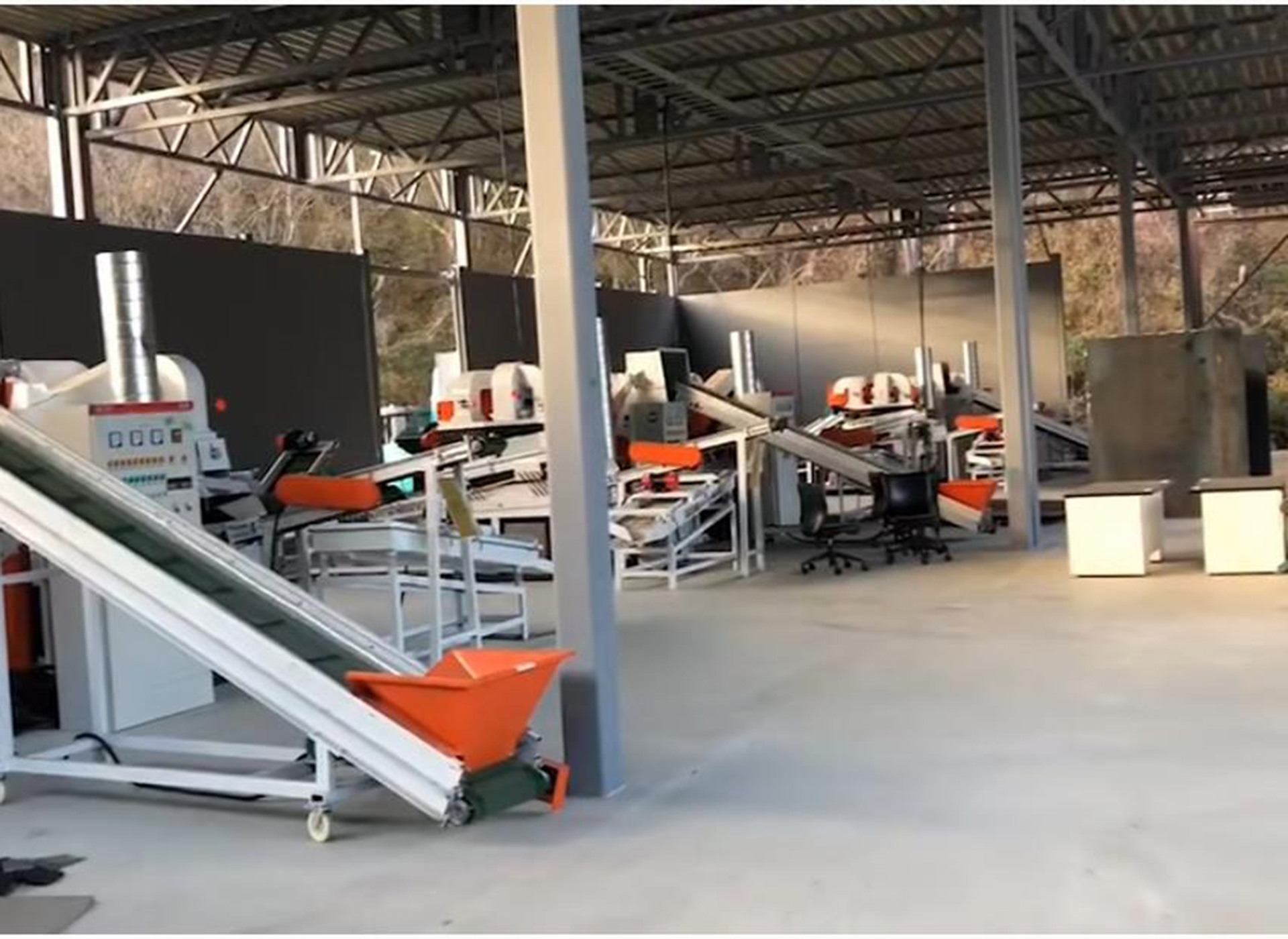

KLG-600S Granulator in Japan
KLG-800S Granulator in Korea

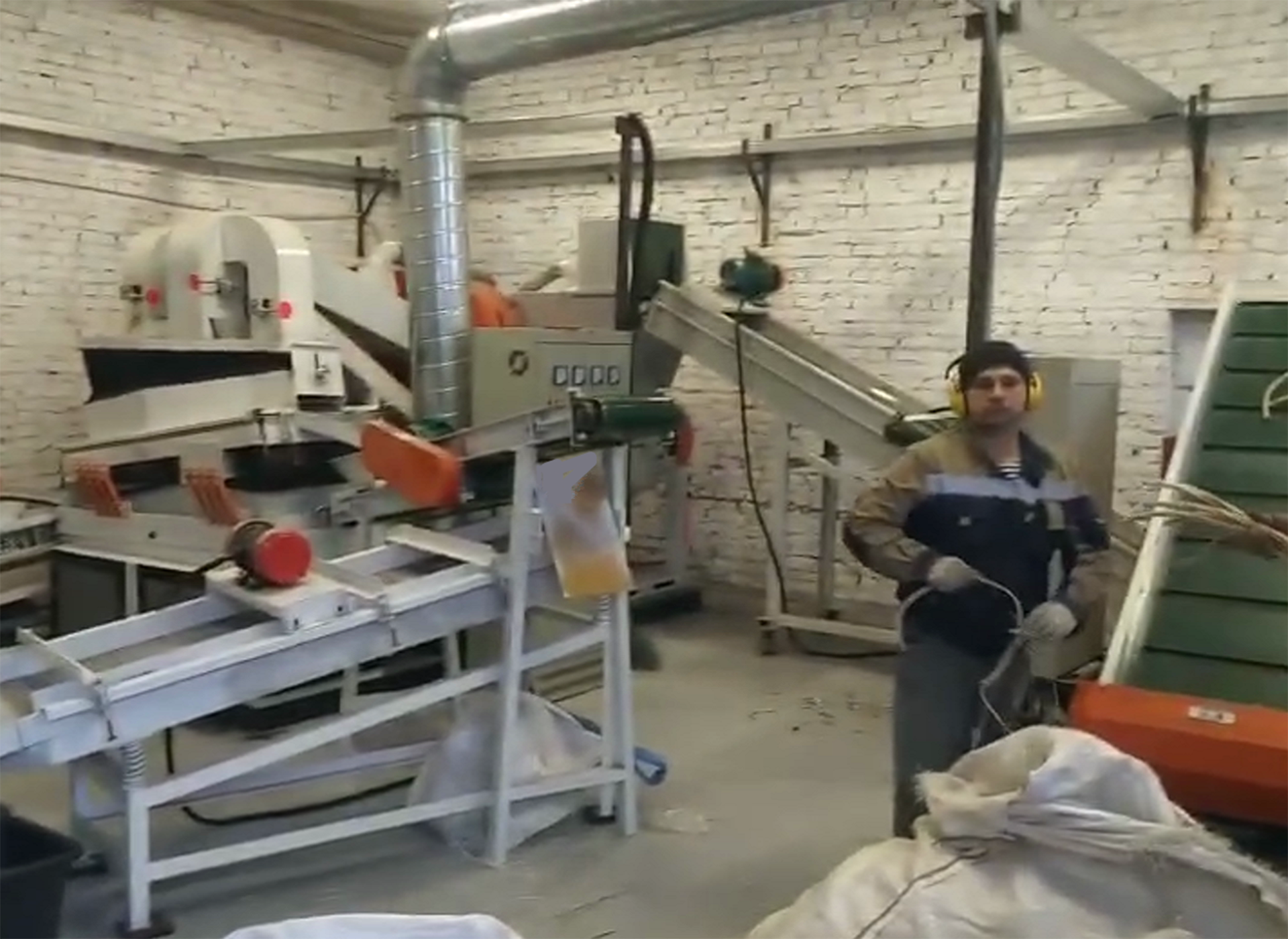

KLG-600S granulator in Russia

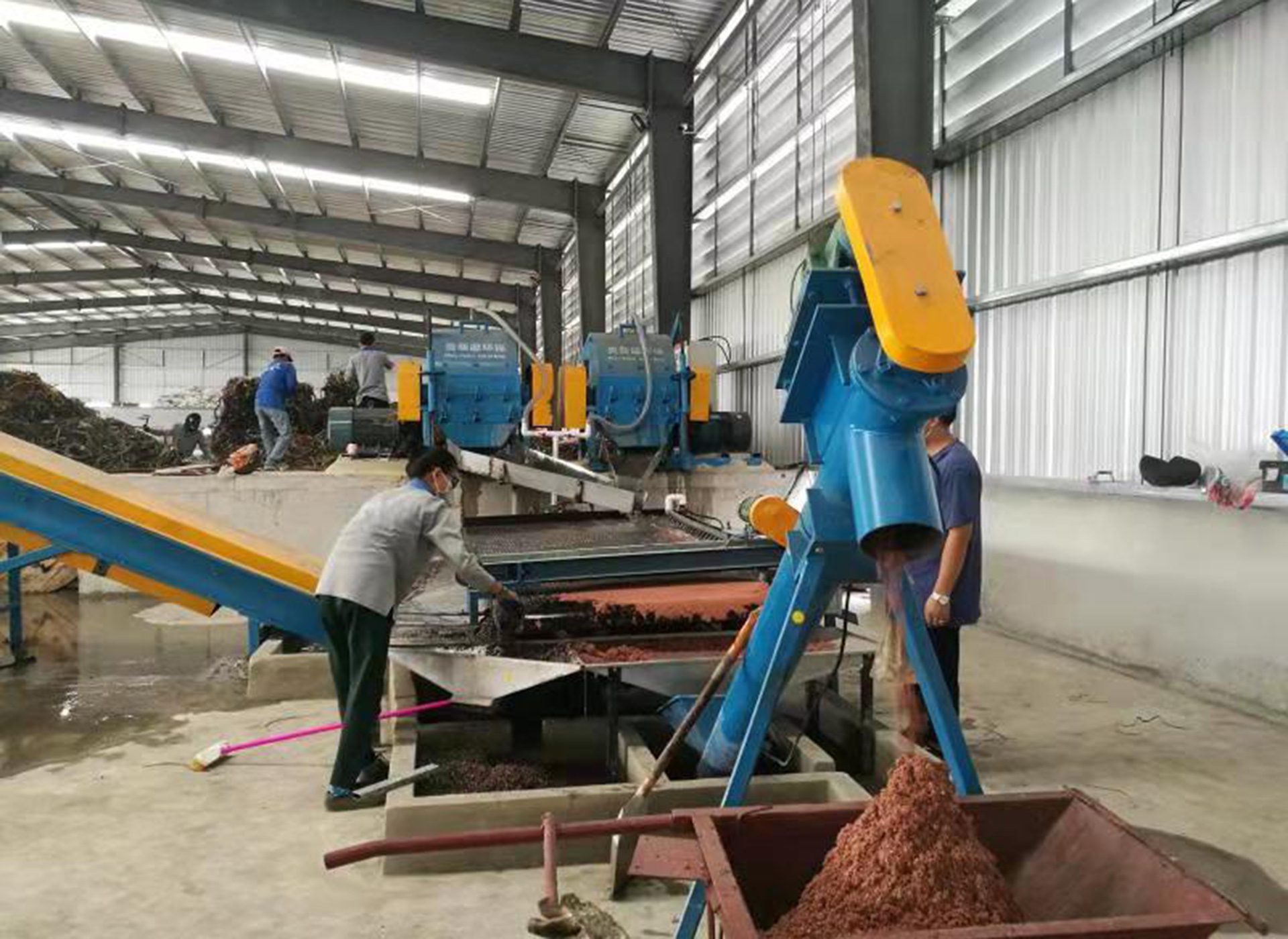

Water type Granulator in Thiland
About Us
KLAY is a professional metal and wire recycling solution provider, involved in metal wire recycling machinery design, manufacturing, sales and service since 2011.
• New technology and better manufacturing process. Also we are member of CRRA.
• Machines are strictly made to technical data under 5 times tests by our QC team.
• 10 years manufacturing & export history of metal baler/shear, cable granulating/stripping machine . We will be your reliable and permanent partner.

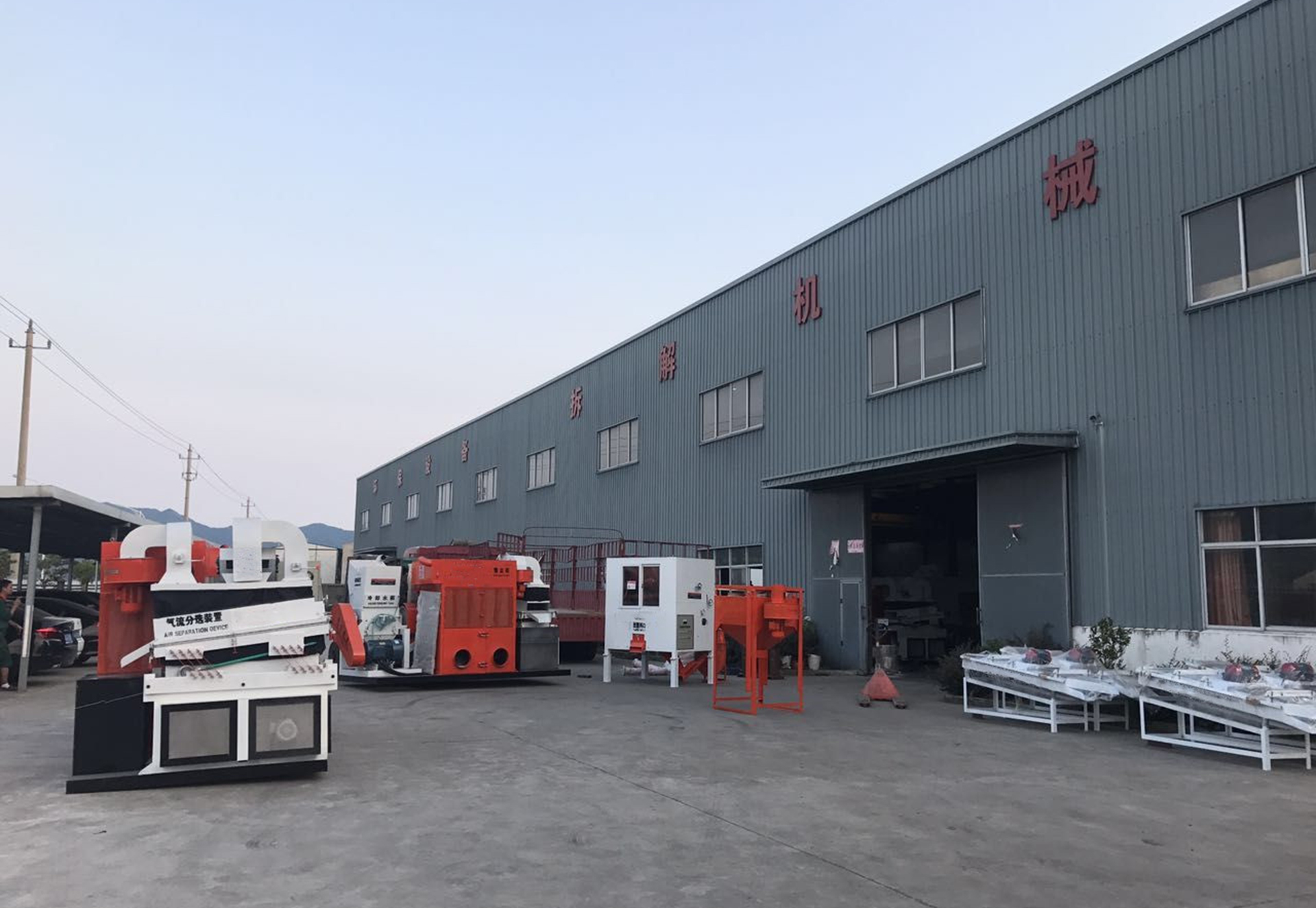

Our Factory
partners
Services
Pre-sale Service
Market Analysis We can study the projects with customers together to help them to make best investment with less cost.
Material Testing To guarantee the real performance of our machine, customer can bring the material for testing without charge.
Solution Design Our experienced engineer will make proposal drawing based on the customer's needs.
Reconstruction Project We can provide the upgrade services of the old production line for customers.
After-sales Service
1. One year warranty for whole machine except wearing parts.
2. During warranty period, free replacement of damaged parts (caused by quality issue).
3. Timely video technical support on installation, operation & repair. The overseas local dealer comes to guide the repair in some places.
4. Big discount on future parts procurement.
5. Feel free to contact our Technical consultant anytime！

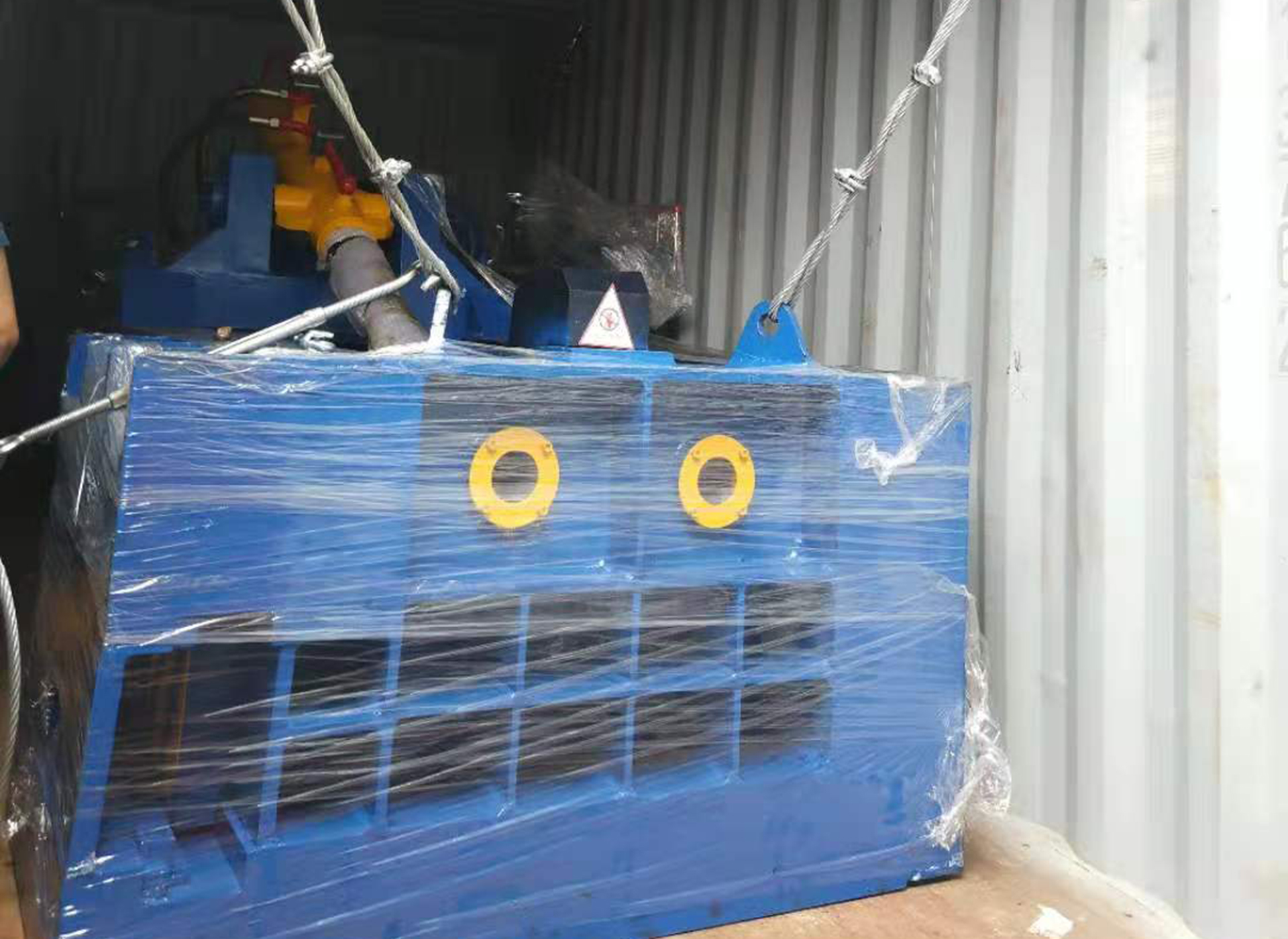

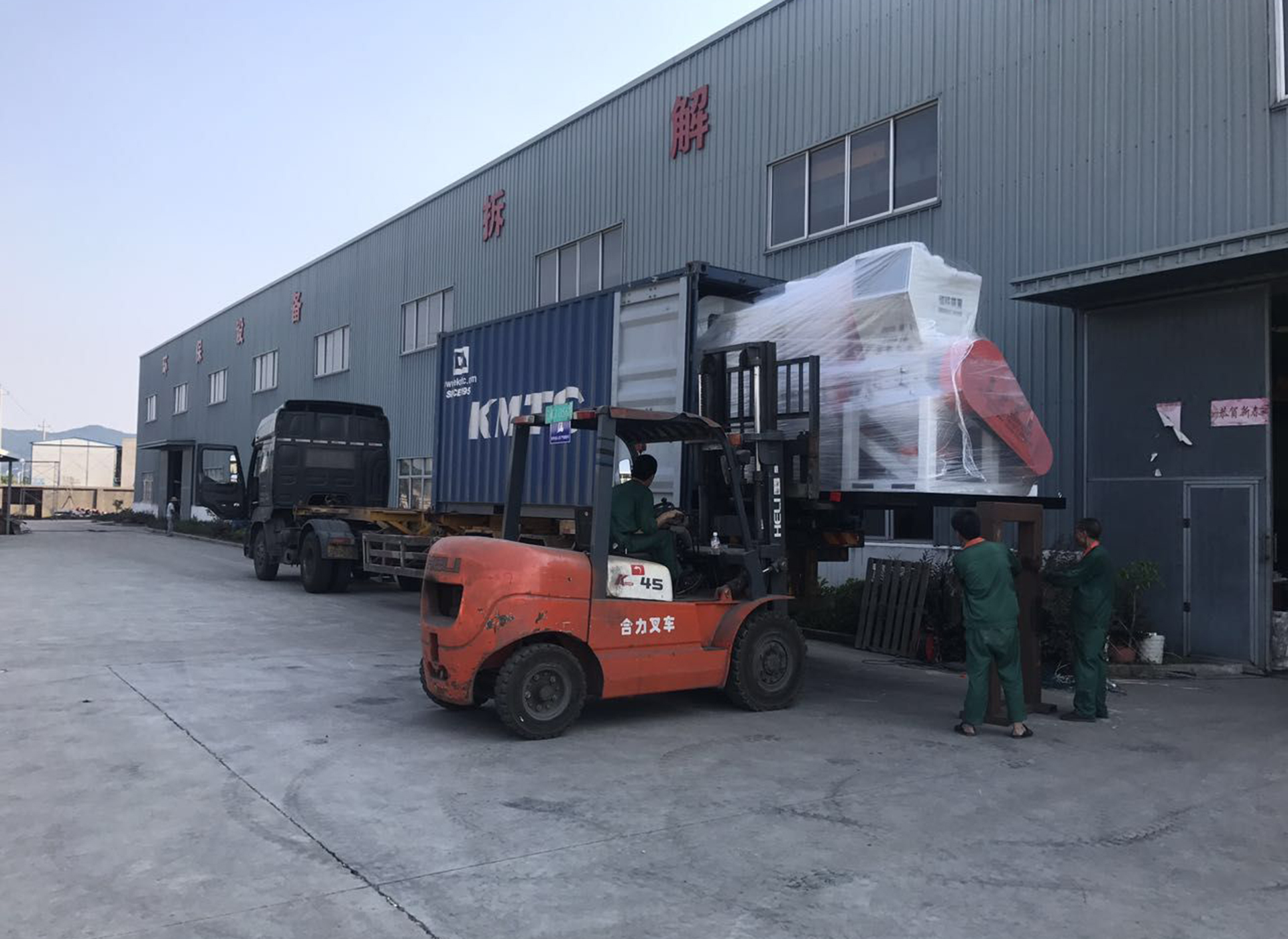

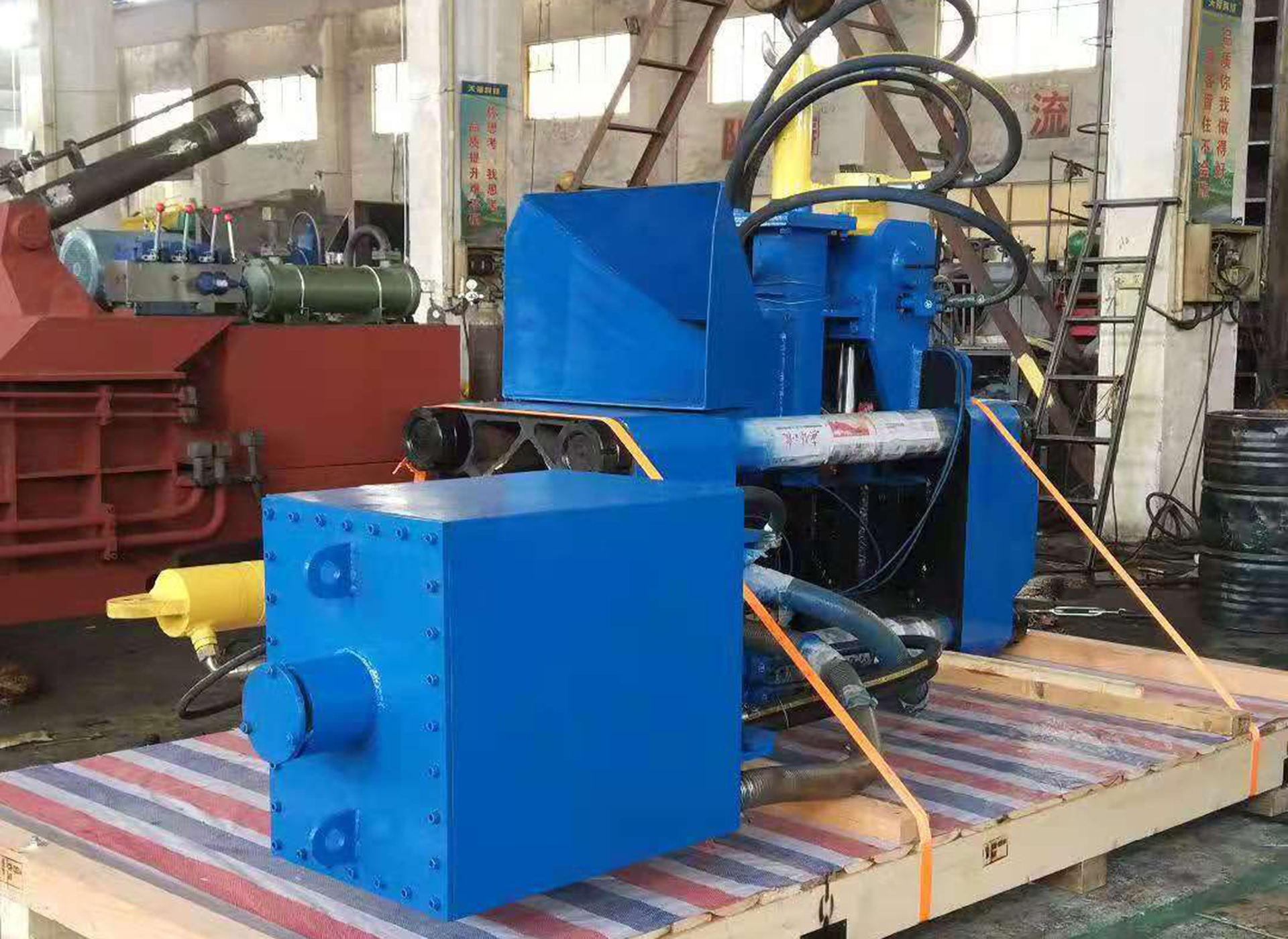

Packing & Shipment
Stretch film wrapped
Steel wire rope locking
Wooden pallets
Standard wooden box packing
faq
Is the machine installation complicated? Can buyer finish it by themselves?
Our upgraded design with compact structure, we already test well and all data been set. You just need to get the power connected.
Can the machine be used for scrap aluminum wire?
Sure, the machine is multipurose. It can be used for various sizes and kinds of cables.
Will it take too much space for laying the whole line machine?
Not exactlly. Our design is the most reasonable. Besides we will give you the customized layout proposal to save your space.
How long is the warranty?
One year for whole machine (not include the wearing parts)
What if machine parts broken or stopped running?
During the warranty, if any machine parts broken due to quality issues, we will provide it freely. After warranty, you just need to buy it from us at cost price. Any time when the machine stopped, please contact us and provide photos & videos, we will give you the solution as early as we can. 24 hours online service.
